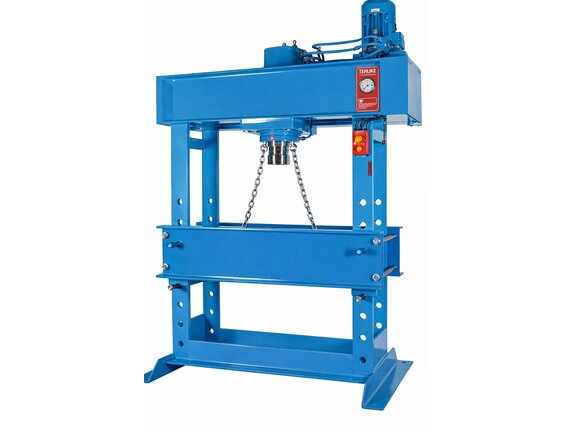

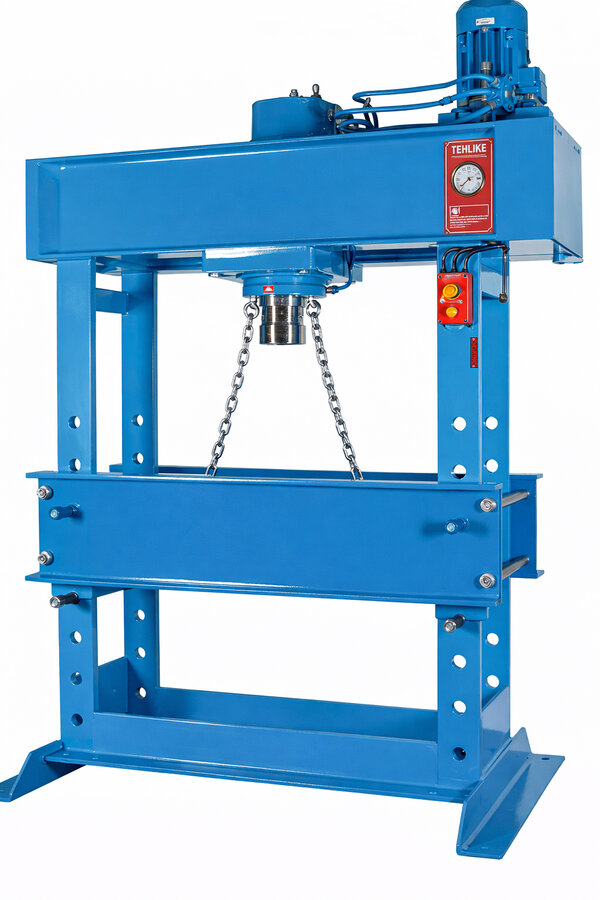

This series of hydraulic workshop presses with motor drive are designed with a stable portal with adjustable, open support table and are suitable for applications such as pressing in and out bearings, for assembly and straightening work or for testing workpieces. The laterally positionable working cylinder facilitates set-up without the workpiece having to be moved. These presses are almost indispensable in technical workshops and maintenance departments.
Working area | |
---|---|
Working width | 1100 mm |
Frame through-hole | 350 mm |
Pressure force | 160 t |
Operating pressure (max.) | 400 bar |
Stroke | 400 mm |
Forward motion speed | 6,2 mm/s |
Press speed | 6,2 mm/s |
Return speed | 9,8 mm/s |
Drive capacity | |
---|---|
Motor rating hydraulic pump | 5,5 kW |
Measures and weights | |
---|---|
Hydraulic tank volume | 15 l |
Weight | 1300 kg |
Dimensions (L X W X H) | 1640 mm x 950 mm x 2550 mm |
Dimensions | |
---|---|
A | 2550 mm |
B | 950 mm |
C | 1390 mm |
D | 1100 mm |
E | 350 mm |
F | 1640 mm |
Piston can be moved left-right to change the position of the pressing point.
Piston can be moved left-right to change the position of the pressing point.
The support table can be easily adjusted at the desired height.
Multi-function V-blocks wich extend the range of possible operations.
