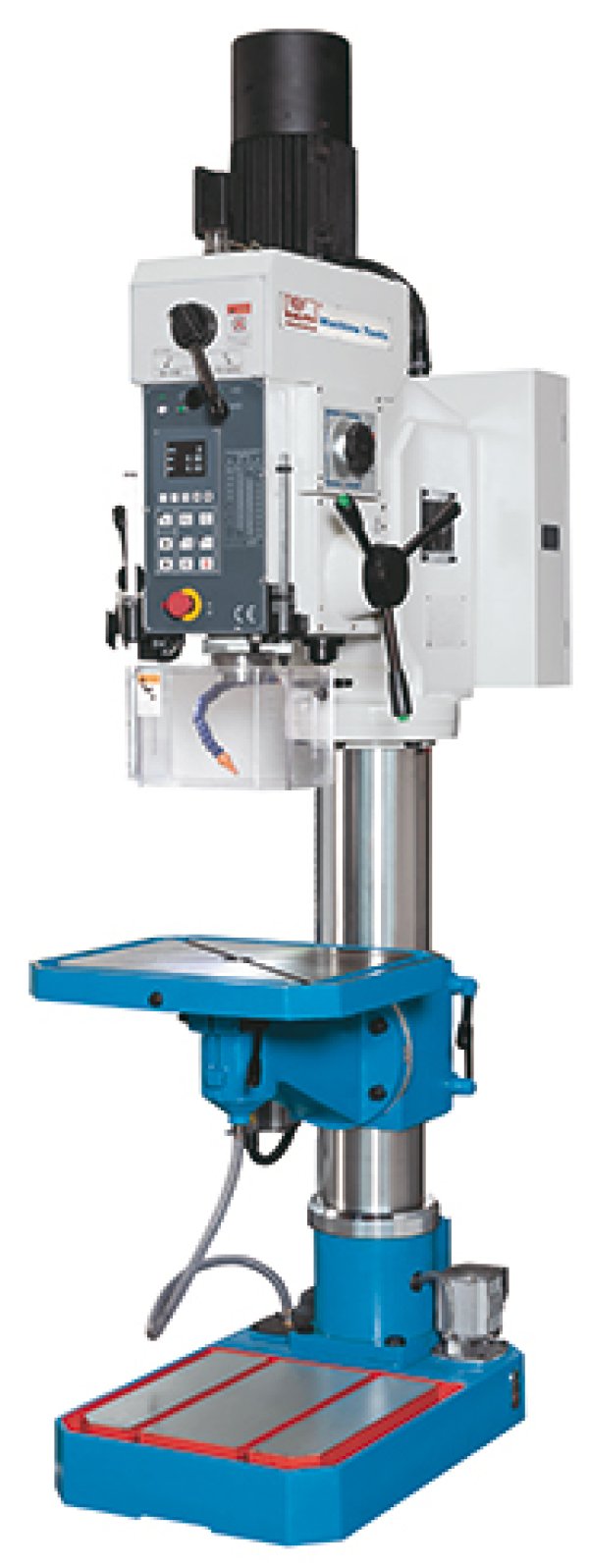

SSB 50 F Super VT

SKU : 101673

The drilling machines of the SSB F Super series are the right choice for every workshop, from maintenance to production. The sturdy drilling machines are constructed with a thick-walled column and powerful drives. The spindle speed is infinitely variable and the quill feed has a robust gearbox. Whether via the control panel or touchscreen, all functions are clearly displayed and are easy to use. The clamping table can be moved in height using a motor and facilitates the handling of heavy parts.

  • High drilling and thread cutting capacity
  • Infinitely variable speed
  • Motorized table height adjustment
  • Swiveling and rotating setup table
  • Fully equipped
Quick delivery
Working area
Drilling capacity 50 mm
Tapping capacity, steel M 30
Table set up area 570 mm x 460 mm
Quill stroke 200 mm
Manual table travel 530 mm
Powered table travel 410 mm
Table swivel range (max.) ± 45°
Column diameter 180 mm
Spindle nose-to-table surface distance 550 mm
Spindle nose-to-foot distance 1175 mm
Throat 360 mm
Headstock
Speed range 50 1/min - 2200 1/min
Spindle mount 4 MT
Feed
Quill feeds 0,08; 0,12; 0,17; 0,24; 0,35; 0,50 (6) mm/R
Drive capacity
Motor rating main drive 2,2 kW
Measures and weights
Overall dimensions (length x width x height) 1,15 m x 0,68 m x 2,36 m
Weight 650 kg

Ideal for drilling, countersinking, reaming and tapping

  • Heavy construction with thick-walled column
  • Base, column, table and gear head are made of premium high-quality cast iron
  • Large drill press table with circumferential coolant groove, height adjustment, and ± 45° swivel range
  • Table height adjustment via a powerful motorized drive
  • The auxiliary gears run in an oil-bath for maximum reliability and minimum wear
  • 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
  • Easy handling of the machine ensures effortless operation in a production environment
  • Thread-cutting feature is standard

Modern operating concept with rugged touchscreen display

  • 8" touchscreen features a rugged, resistant surface
  • No programming skills are required for the modern, patented control system
  • The infinitely variable spindle speed can be controlled at the display and is easy to read
  • The control system assists the operator with the selection of the correct rpm and feed speed
  • The system recommends cutting parameters based on bore diameter and material, which also may be accepted automatically
  • The depth stop is set electronically at the display
  • Measuring units for input and display can be selected by the operator (mm or inch)
  • Various alarm screens warn the operator in case of operational errors
  • The high-performance coolant system also is activated at the touchscreen
  • The system features an operating hour counter

Touchscreen controller SKU:

Modern operating concept with rugged touchscreen display

  • 8" touchscreen features a sensitive but rugged surface suited to heavy daily workshop use
  • Operation is intuitive and requires no programming knowledge
  • The control system assists the operator in selecting the correct machining technology values
  • The suitable spindle speed and feed can be preset depending on the drill diameter and material
  • The current speed is displayed on the touchscreen and is infinitely variable
  • An electronic depth stop halts automatic feed with greater accuracy and no mechanical stress
  • Measuring units for input and display can be selected by the operator (mm or inch)
  • The coolant system is built into the machine stand and is also activated on the touchscreen
  • The built-in operating hour counter aids in monitoring service intervals and in cost calculation
  • Easy handling of the machine ensures effortless operation in a production environment and increases productivity
Touchscreen controller
Touchscreen controller SKU:

Modern operating concept with rugged touchscreen display

  • 8" touchscreen features a sensitive but rugged surface suited to heavy daily workshop use
  • Operation is intuitive and requires no programming knowledge
  • The control system assists the operator in selecting the correct machining technology values
  • The suitable spindle speed and feed can be preset depending on the drill diameter and material
  • The current speed is displayed on the touchscreen and is infinitely variable
  • An electronic depth stop halts automatic feed with greater accuracy and no mechanical stress
  • Measuring units for input and display can be selected by the operator (mm or inch)
  • The coolant system is built into the machine stand and is also activated on the touchscreen
  • The built-in operating hour counter aids in monitoring service intervals and in cost calculation
  • Easy handling of the machine ensures effortless operation in a production environment and increases productivity
Thread cutting function
Thread cutting function SKU:
  • The tapping mode can be selected from the control panel
  • In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle
Protective shield
Protective shield SKU:
  • With interlock system for increased safety
  • High adjustable
LED work lamp
LED work lamp SKU:
Coolant system
Coolant system SKU:
Operating tools
Operating tools SKU:
Operator manual
Operator manual SKU:
