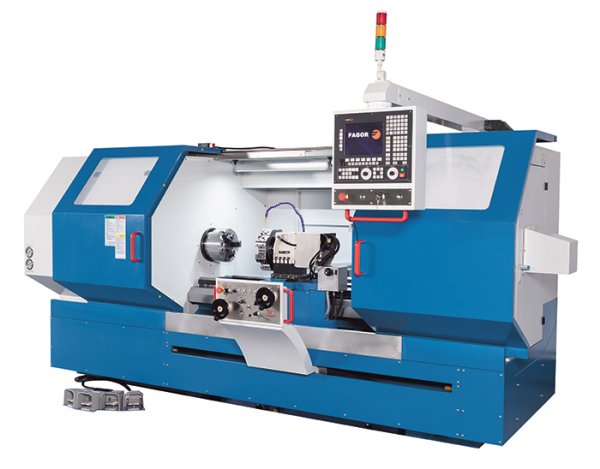

Numturn 500/1500 FA - Large work area with high-quality cycle control for single parts and series production
The Fagor 8055 CNC provides an intuitive workshop programming solution via simple graphic-based dialog buttons

The Fagor 8055 CNC provides an intuitive workshop programming solution via simple graphic-based dialog buttons

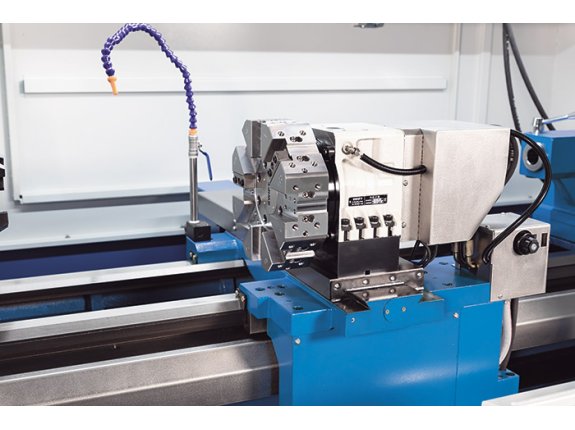

Automatic 8-station tool turret with hydraulic clamping

Automatic 8-station tool turret with hydraulic clamping

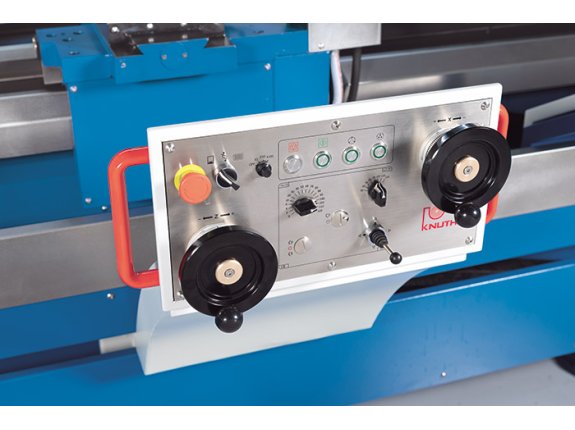

Two electronic hand-wheels provide the familiar ergonomics of a conventional machine and allow fast setups and manual machining

Two electronic hand-wheels provide the familiar ergonomics of a conventional machine and allow fast setups and manual machining

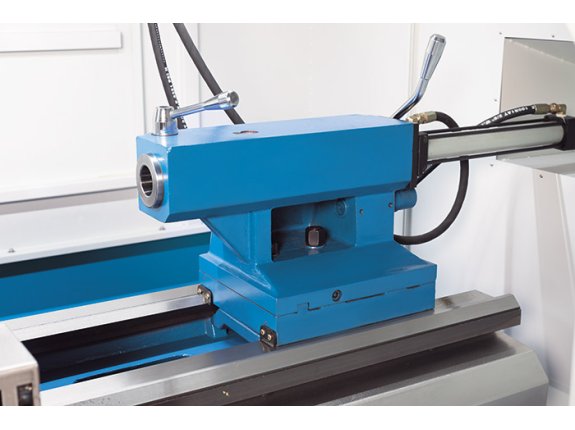

Rigid and easy to position tailstock with hydraulically moved quill

Rigid and easy to position tailstock with hydraulically moved quill

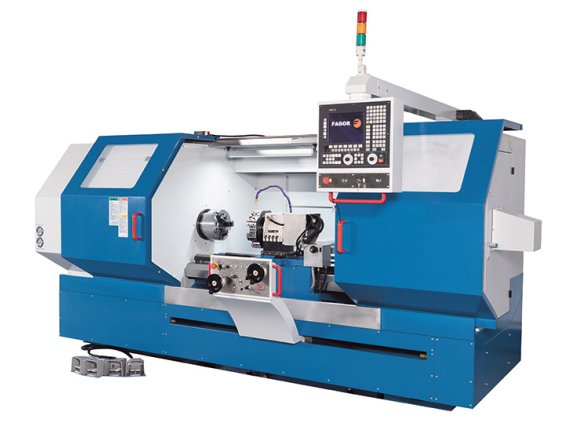

Numturn 500/1500 FA - Large work area with high-quality cycle control for single parts and series production
The Fagor 8055 CNC provides an intuitive workshop programming solution via simple graphic-based dialog buttons

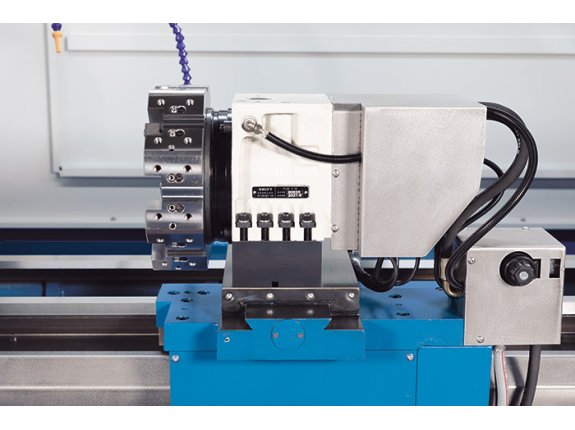

Automatic 8-station tool turret with hydraulic clamping
Two electronic hand-wheels provide the familiar ergonomics of a conventional machine and allow fast setups and manual machining
Rigid and easy to position tailstock with hydraulically moved quill
HOT DEAL

This machine is part of our seasonal sale.

CYCLE-CONTROLLED LATHE

Numturn 500/1500 FA

SKU : 423496
Custom Model
€57.900,00 -15% €49.200,00
excl. VAT
Only 1 in stock - quick delivery!

The CNC box-way lathes of the Numturn 500 Series are suitable for a wide spectrum of applications. They are ideal for single parts production and also for cost-effective small batch production of larger workpieces. The standard package includes an automatic 8-station tool turret and a hydraulic power chuck providing even more flexibility and productivity. The Fagor control is a superior tool for workshop programming and an easy to use CNC solution with an excellent price/performance ratio.

  • Fagor 8055i control
  • 8-station servo-driven tool turret
  • Hydraulic power chuck
  • Tailstock with hydraulic quill
Working area
Workpiece length (max.) 1450 mm
Turning-Ø over bed (max.) 500 mm
Turning-Ø over support 300 mm
Turning length (max.) 1230 mm
Travels
Travel X-axis 260 mm
Travel Z-axis 1420 mm
Headstock
Speed range 60 1/min - 2000 1/min
Spindle mount A2-8
Lathe chuck diameter 250 mm
Spindle capacity with draw tube 70 mm
Rapid feed
Rapid feed X-axis 4000 mm/min
Rapid feed Z-axis 8000 mm/min
Tooling
Number of tool stations 8 positions
Accuracies
Positioning accuracy X-axis ± 0,006 mm
Positioning accuracy Z-axis ± 0,008 mm
Repeatability X-axis ± 0,005 mm
Repeatability Z-axis ± 0,008 mm
Tailstock
Tailstock taper 5 MT
Tailstock quill diameter 75 mm
Tailstock quill stroke 150 mm
Drive capacity
Motor rating main drive 15 kW
Main drive, continuous load 11 kW
Torque of drive X 10 Nm
Torque of drive Z 15 Nm
Motor rating coolant pump 0,125 kW
Measures and weights
Overall dimensions (length x width x height) 3,21 m x 1,23 m x 1,6 m
Weight 3300 kg

  • Heavy ribbing of the machine frame and wide hardened V-guides for heavy-duty machining
  • Headstock and main spindle are designed for constant precision and optimum temperature balance
  • High-quality spindle bearings ensure error-free continuous operation
  • The heavy-duty tailstock is easy to handle and features high clamping force
  • The automatic 8-station servo-driven turret with hydr. clamping is part of the standard package and ensures maximum flexibility and productivity
  • Hydraulic chuck with adjustable holding force included in standard equipment
  • Completely lockable machine enclosure with easy access via sliding door
  • The operating elements and ergonomics correspond to the current Numturn generation and guarantee a quick familiarisation
  • Smart central lubrication system for low-maintenance operation

Fagor 8055i control SKU:
Fagor 8055i control
Fagor 8055i control SKU:
2 electronic hand-wheels
2 electronic hand-wheels SKU:
Hydr. 3-jaw chuck Ø 250 mm
Hydr. 3-jaw chuck Ø 250 mm SKU:
Automatic central lubrication
Automatic central lubrication SKU:
Work lamp
Work lamp SKU:
Operating tools
Operating tools SKU:
Operating manual and programming instructions
Operating manual and programming instructions SKU:
Hydr. tailstock
Hydr. tailstock SKU:
8-station servo tool post
8-station servo tool post SKU:
