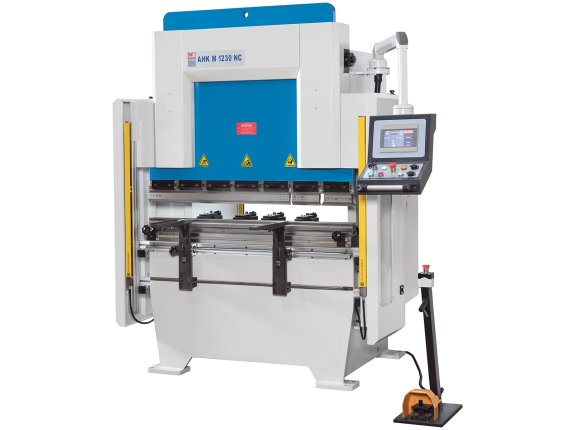

AHK M 1230 NC

Machine Frame and Male Die

• The machine frame is made of a high-precision, stress-relieved steel weldment and features a rigid bending bar and hydraulic cylinders on both sides
• A large throat and narrow table ensure plenty of free space to accommodate complex bending sequences

Hydraulics

• The hydraulic unit with reservoir is placed in the top part of the machine frame to save space and add to the rigidity of the construction
• Precise upper beam positioning is ensured by a torsion shaft that connects the depth stops of both cylinders

Front Support Arms

• Each support arm can be adjusted in height and is extremely sturdy
• A stop ridge on the supporting surface helps with workpiece alignment

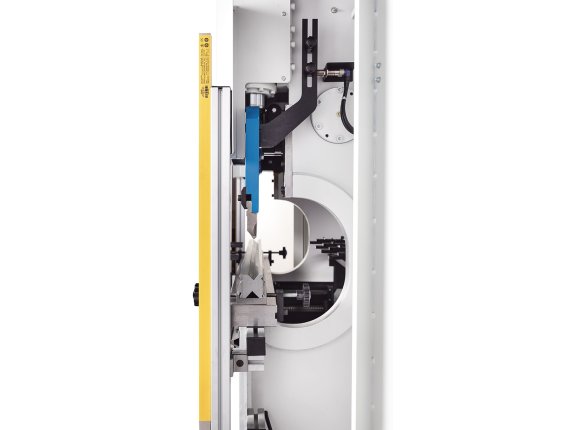

Bending Tools

• Promecam tool mounts to accommodate an extensive selection of bending tools
• Manual quick-action clamping system for tool mount shortens tool changing times
• With 4 bending dies the die can handle a wide spectrum of workpieces

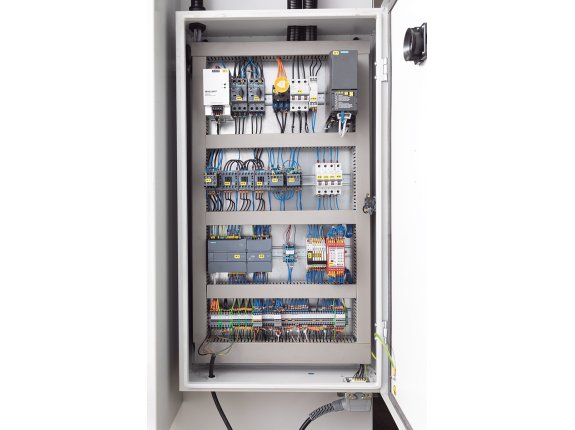

Safety and Productivity

• Safety features are based on the latest CE regulations

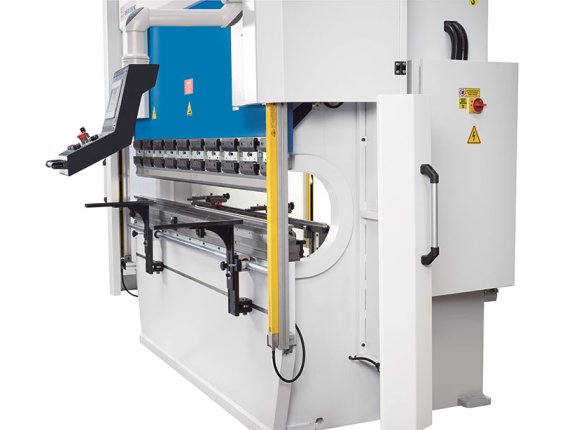

• Light curtains around the work area provide reliable protection

Control

• All functions are input and retrieved directly at the touchscreen
• In manual mode, all axes can be positioned via motorized motion and the set values are shown on the display
• In semi-automatic mode, the values entered by the user are directly selected
• In auto. mode, the programmed bending sequence is positioned automatically
• Each storage area holds 500 data sets, and programs can be stored externally and re-imported
• The axis position is maintained when the display is turned off
• In addition to a USB port, the machine also features a network port at the control panel

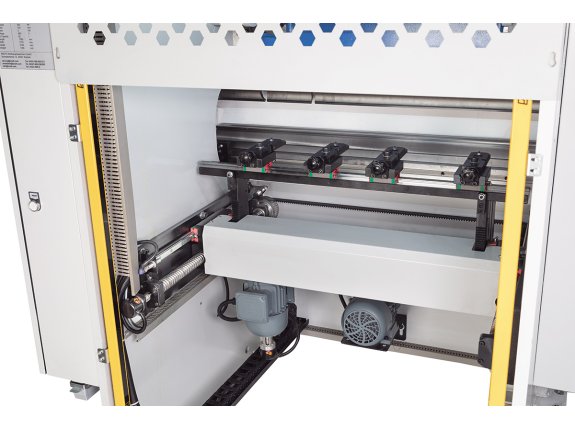

Back Gauge

• The excellent stability of the NC-controlled back gauge is an important factor for achieving excellent machining precision
• Linear guides and large preloaded ball screws are low maintenance and extremely sturdy
• The motorized R-axis simplifies the precise stop-height set-up
• Lateral positioning of back gauge fingers on dual, smooth-running linear guides

The backgauge is equipped with 2 additional stop fingers as standard.
